Piloto Automático Raymarine Ev-100 Wheel Evolution
Piloto Automático EV-100 Wheel Evolution

Características:

Um piloto automático completo e pronto para uso
Evolution Ai para desempenho superior
Não requer calibração
Instalação rápida e fácil
Serve para a maioria dos tipos de rodas de veleiro
Engate de embreagem simples e robusto
Para barcos de até 7.500 kg (16.500 lbs)
Para sistemas de alimentação de 12 V CC
Inclui o Controle de Piloto Automático p70s

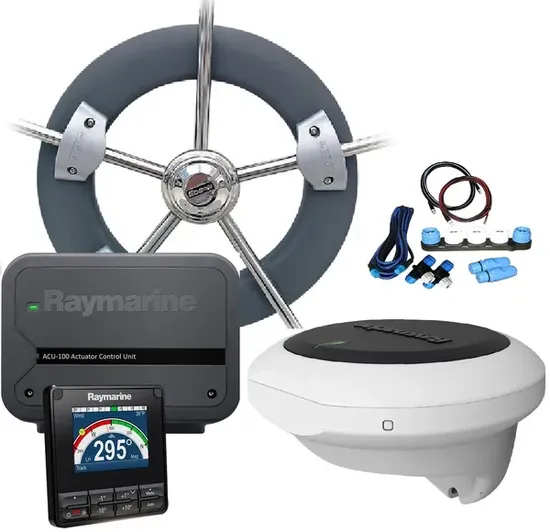

Inclui:

Núcleo do Sensor EV-1
Cabeça de Controle do Piloto Automático p70s
Unidade de Controle do Atuador ACU-100
Tração nas Rodas
Kit de Cabeamento Evolution
Pacote de Anéis de O para Unidade EV (conjunto com 2)
Suporte para Montagem em Parede

he EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Features:

Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation options. Mount above or below deck
Simple SeaTalkng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
p70s Autopilot Control Head

The p70s is a push-button operation controller designed primarily for sailboats.

Features:

LightHouse user interface is simple and quick to use
Wide 160° viewing angles
Start up wizard helps you configure the pilot quickly and easily
Anti-reflective coating for improved visibility in bright sunlight
Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
Simple system and group dimming/illumination
Support for multiple data sources
SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required)
ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

1 x SeaTalkng Power Cable (0.4m)
1 x SeaTalkng Backbone Cable (5m)
1 x SeaTalkng Spur Cable (0.4m)
1 x SeaTalkng 5-way Connector Block
2 x SeaTalkng T-piece Connector
2 x SeaTalkng Terminator
